คำตอบที่ 1

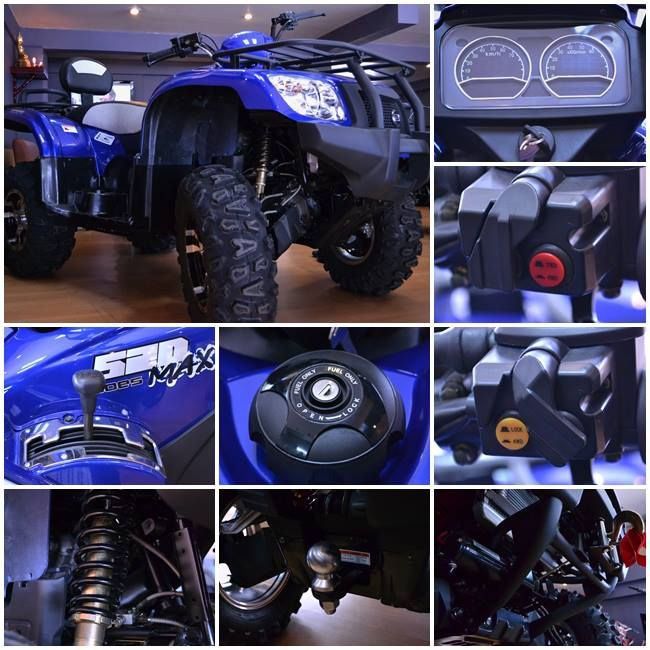

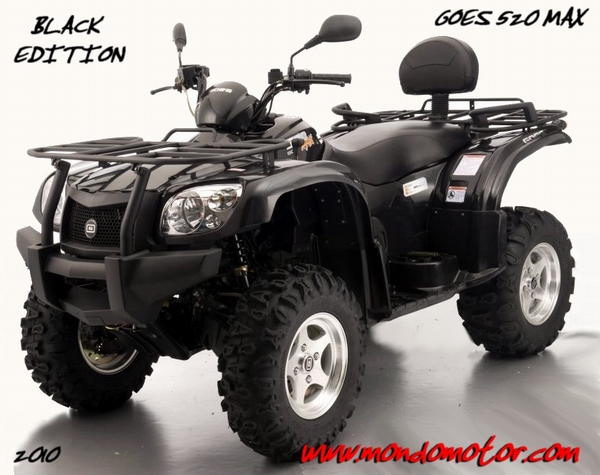

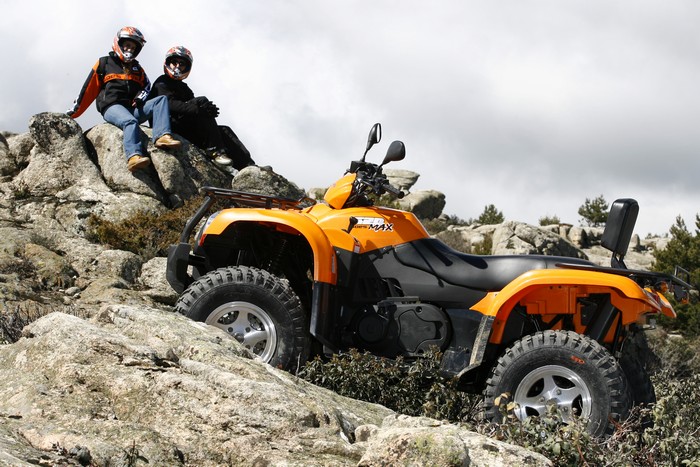

สเป็ครถ ของรุ่น 520Max นะครับ
ENGINE
Type Liquid-cooled, 4-stroke, SOHC
Displacement 493 cc
Bore and Stroke 87.5 x 82 mm
Compression Ratio 10.2 : 1
Cylinder Arrangement Forward-inclined single cylinder
Lubrication Auto lube/oil pump pressurized
Clutch Type automatic,dry centrifugal
Ignition C.D.I.
Starter System Electric/Recoil
CHASSIS
Front Wheel Travel 178 mm
Front Differencial LSD with locking device
Suspension Double A-arm
Rear Wheel Travel 165 mm
Front Brake 2 Disc single floating caliper
Rear Brake 1 Disc single floating caliper
Combined Brake Foot pedal
Stamonary Brake Mechanical/Hydraulic brake on rear disc
Front Differencial LSD with locking device
Front Tyre Size AT 25x8-12
Rear Tyre Size AT 25x10-12

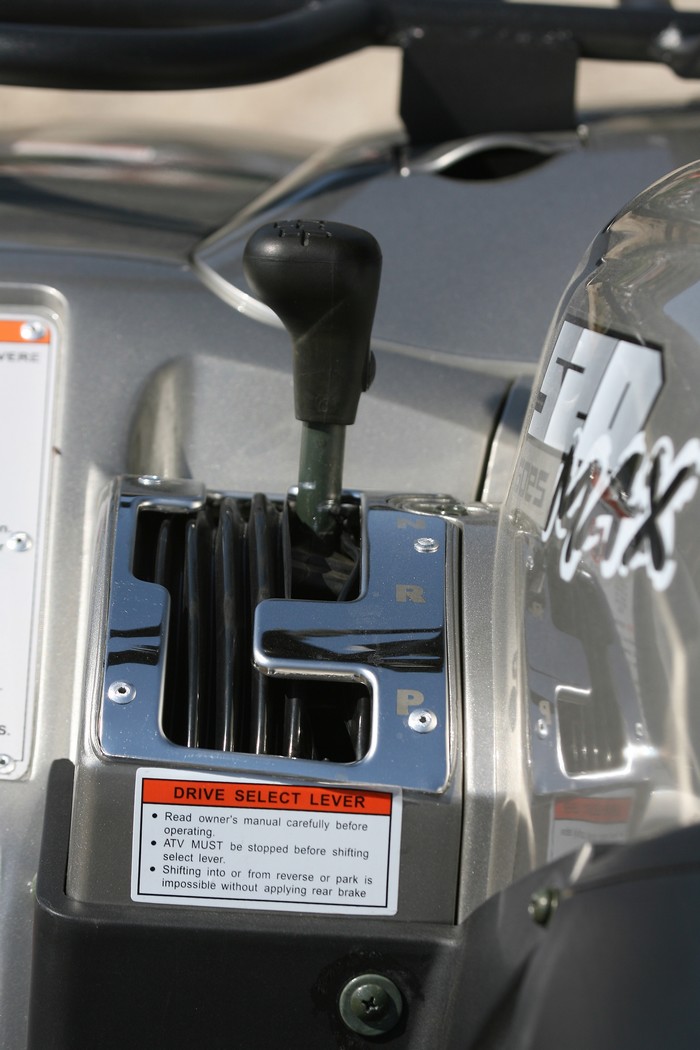

TRANSMISSION
4x4 / 4x2 - CVT - P/R/N/H/L
Final Transmission Shaft drive t wo -wheel drive
Overall Length 2320 mm
Overall Width 1170 mm
Overall Height 1230 mm
Seat Height 920 mm
Wheelbase 1490 mm
Minimum Ground Clearance 290 mm
Dry Weight 325 kg
Front Track 875 mm
Rear Track 795 mm
Fuel Tank Capacity 19 Litre
Front Rack Capacity 35 kg
Rear Rack Capacity 70 kg
Towing Capacity 350 kg
