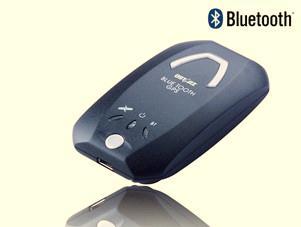

Applications
Acquisition 32 channels with super high sensitivity (-157dBm).
Personal/Portable Navigation (PDA, Pocket PC, Laptop, etc.).
The world's fastest TTFF (Time-To-First-Fix) GPS at cold start.
The world's fastest Time-To-First-Fix indoors gps at cold start
Turn off automatically if no Bluetooth connection.
12 hours operating on full charged battery.
Bluetooth V1.2 operation range: 10 Meters.
Non-slip back pad for a secure placement
Specifications
GPS Chip RFMD
Frequency L1, 1575.42MHz
C/A Code 1.023MHz chip rate
Channels Adaptive, 8-12 SVs (best 8 used in solution)
Antenna (Intemal) Built-in low noise antenna
Extemal Antenna Port Active MMCX Antenna
Sensitivity To - 157dBm Tracking, Superior Urban Canyon Performance
Acquisition Rate
Cold Start 43 sec, average
Warm Start 25 sec, average
Hot Start 4 sec, average
Reacquisition 1 sec
Accuracy
Position 5m CEP without SA
Velocity 0.1m/sec 95%(without SA)
Time 1s synchronized to GPS time
Daturn WGS-84
Dynamic Conditions
Altitude <18,000m
Velocity <515m/sec
Acceleration < 1G
Motional Jerk 4 m/sec.
Interface Communicate with host platform via Bluetooth (class 2)
serial port profile, Bluetooth communication distance 10 M.(Typical).
GPS Protocol Default: NMEA-0183 V2.2 - GGA, GSA, GSV, GLL, RMC,VTG
Baud rate 9600/38400 bps, Data bit : 8, stop bit : 1(Default)
Operating Temperature -20°C ~ +60°C
Storage Temperature -50°C ~ +100°C
Humidity Up to 95% non-condensing
Power
Built-in rechargeable 1100mAh Li-ion battery and 5 V DC input
Operation Current <80mA (Typical)
Operation Time 12hrs, fully charged,in continuous mode
Charging time 3.0hrs. (Typical)
Device Size
81 (L) X 43 (W) X 17.6 (H) mm
3.19 (L) X 1.69 (W) X 0.69 (H) inch
สนใจติดต่อของดูหรือทดลองสินค้าได้ที่ ร้าน softworld shop ห้าง unien mall หรือโทรสอบถามได้ที่ 014445598 หรือ 096686147
|
ราคา 4200 บาท
