VW TYP 166 Schwimmwagen TECHNICAL SPECIFICATIONS
Mechanics

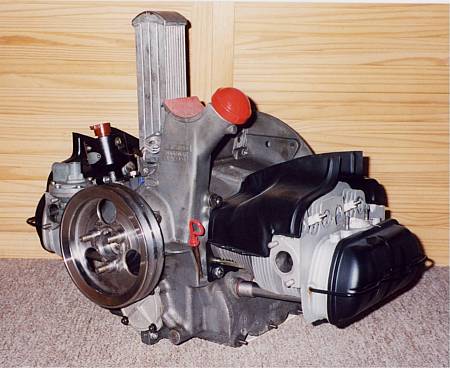

engine type: KdF (Volkswagen beatle)
cylinders: 4
engine size: 1130cc
power: 25 HP
electrics: 6V
car battery: 6V, 75Ah (DIN Kr 2311)
air cooled engine
cooling air vent revolutions at 3300 rpm (engine): 6600 rpm
air quantity: 500L/min

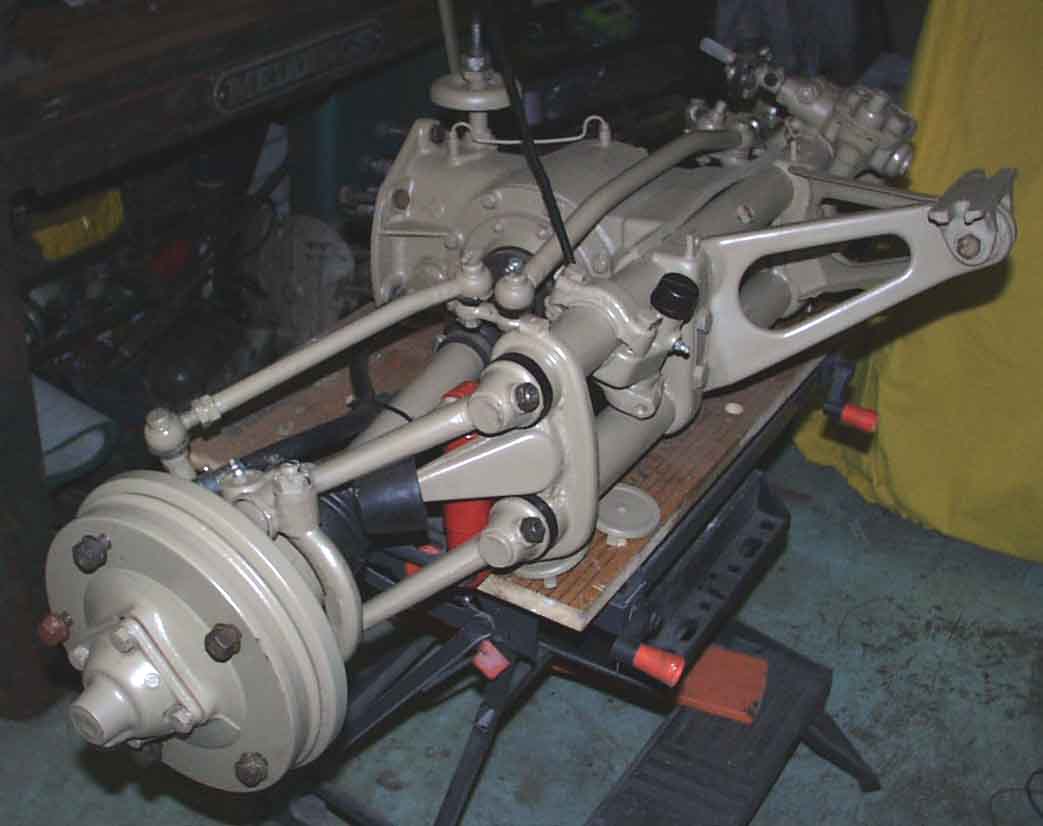

transmission: manual unsyncronized with 4-wheels drive and 1 cross country gear
gear ratio:
cross country =5.86
1=3.60
2=2.07
3=1.25
4=0.80
reverse=6.60
brakes: mechanic, on 4 wheels
hand brake: mechanic, on 4 wheels
front tire pressure: 1.8 atü
rear tire pressure: 2.2 atü
Dimensions
lenght: 3825mm
width: 1480mm
height: 1615 (with closed soft top)
dry weight: 910kg
maximum permissible weight: 1345kg
weight distribution (at max. payload): front axle 540kg, rear axle 805kg
curve radius (road): 9m
curve radius (water): 15m
Speed
Maximum speed of gears at 3300 rpm:
cross country gear (4 wheels drive)=10km/h
1=17 km/h
2=32 km/h
3=50 km/h
4=80 km/h
reverse=9 km/h
maximum speed: 80km/h (road)
minimum sustained speed: 3km/h

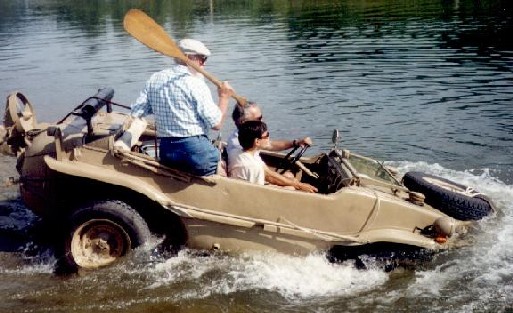

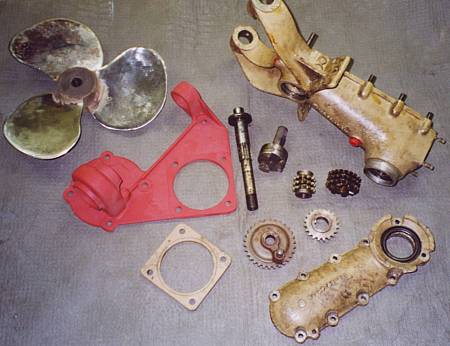

maximum speed in water (still water): 10km/h, at 2300 propeller rpm (moves forward only)
maximum climbing angle with reduced gear at 2000 rpm: 65%
Capacities
seating: 4 persons
fuel tank: 50L (in two separate tanks)
fuel consumption: 8.5L/100km
fuel type: regular gas (very low octane content)
oil consumption: 0.12 L/100km
engine oil: 3L
gearbox oil: 3.5L
front axle oil: 1.5L
