คำตอบที่ 9
ลองตรวจสอบค่าความต้านทานของ TPS ก้อได้ ใช้มิเตอร์แบบเข็มชี้จะเห็นการชี้แสดงได้อย่างแน่นอนกว่าแบบดิจิตอล

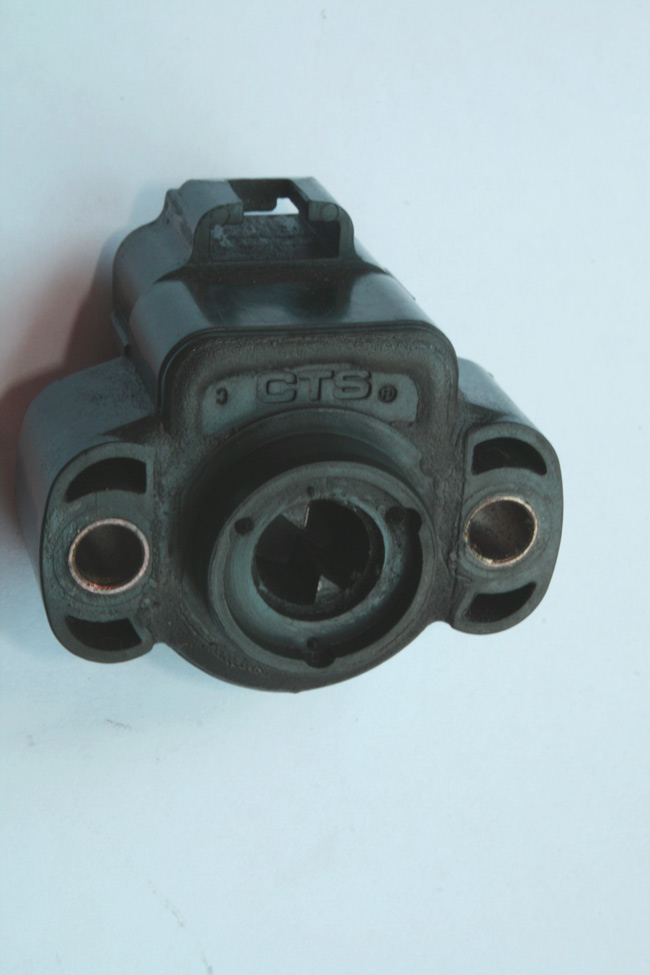

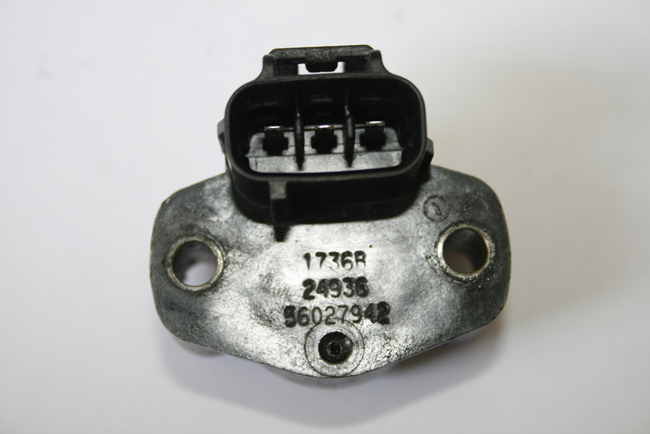

THROTTLE POSITION SENSOR (TPS)
DESCRIPTION
The 3-wire Throttle Position Sensor (TPS) is mounted on the throttle body and is connected to the throttle blade.
OPERATION
The TPS is a 3-wire variable resistor that provides the Powertrain Control Modul (PCM) with an input signal (voltage) that represents the throttle blade position of the throttle body. The sensor is connected to the throttle blade shaft. As the position of the throttle changes, the resistance (output voltage) of the TPS changes.
The PCM supplies approximately 5 volts to the TPS. The TPS output voltage (input signal to the PCM) represents the throttle blade position. The PCM receives an input signal voltage from the TPS. This will vary in an approximately range of from .26 volts at minimum throttle opening (idle), to 4.49 volts at wide open throttle. Along with inputs from other sensors, the PCM uses the TPS input to determine current engine operating conditions. In response to engine operating condition, the PCM will adjust fuel injector pulse width and ignition timing.
The PCM needs to identify the actions and position of the throttle blade at all times. This information is needed to assist in performing the following calculations:
- Ignition timing advance
- Fuel injection pulse-width
- Idle (learned value or minimum TPS)
- Off-idle (0.06 volt)
- Wide Open Throttle (WOT) open loop (2.608 volts above learned idle voltage)
- Deceleration fuel lean out
- Fuel cutoff during cranking at WOT (2.608 volts above learned idle voltage)
- A/C WOT cutoff (certain automatic transmission only)
ติดเท้ามากมาย ของเดิมเฉลี่ยทั้งนอกเมืองในเมือง 2.3 บาท/กิโลเมตร แต่แบบว่าต้นพอได้ปลายพอทนครับ
