คำตอบที่ 22

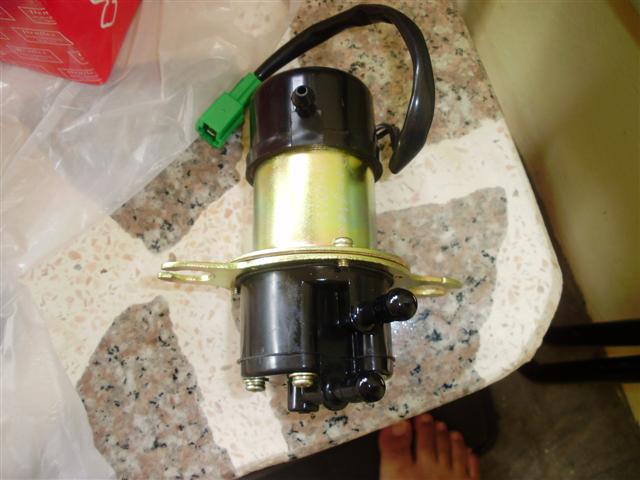

น้าเน็กส์ ปั้ม XJ มันไม่ใช่อย่างนั้นนะ
นี่เรย by the book.....
A frame mounted in-line fuel filter is used. Fuel pump is
attached to fuel gauge sending unit in fuel tank. Voltage to operate
pump is controlled by Electronic Control Unit (ECU). A ballast
resistor is used in the fuel pump control circuit.
Ballast resistor is by-passed during start mode. During
running mode, ballast resistor reduces speed of pump by lowering pump
voltage. This ensures normal speed in running mode. The 1-ohm ballast
resistor is mounted on right side of plenum chamber.
Fuel pump control relay is located on front of right strut
tower. Battery voltage is supplied to relay from ignition switch.
Relay is energized when ECU provides a circuit to ground.

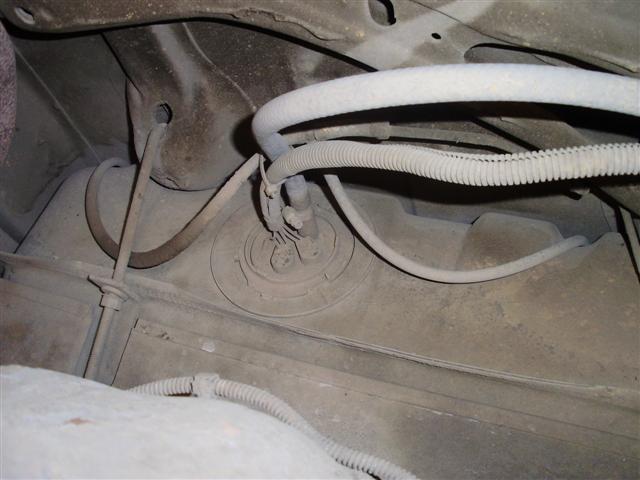

A multi-cell, roller type pump is used on all 4.0L MPFI
models. Pump and fuel filter are located on a plate, forward of rear
axle. Fuel pump control relay location for 4.0L models is on right
inner front fenderwell. Battery voltage is supplied to relay from
ignition switch. Relay is energized when ECU provides a circuit to
ground.
Pump contains 2 check valves. One valve relieves internal
pump pressure and regulates maximum pump output. Second valve,
located near pump outlet, restricts fuel movement in either direction
when pump is not in operation. System operates under a constant fuel
pressure of 31 psi (2.17 kg/cm ).
http://www.lunghd.com/Tech_Articles/Fuel_System/Fuel_Pump_Replacement.htm
แต่ไม่เป็นไรหรอกครับ เดี่ยวเก็บไว้ใส่ในเฟอรารี้ก็ได้ครับ เพราะมันเริ่มมีปัญหาแล้วเหมื่อนกัน
