คำตอบที่ 12

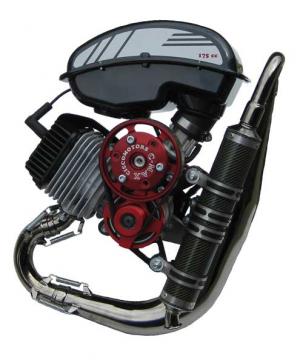

CYLINDER : Aluminium with nichel treated
barrel w/6 scavenge ports
BORE x STROKE : 51 X 47 mm
DISPLACEMENT : 175cc
COMPRESSION RATIO : 12:1
INTAKE : By 6 blade reed valve in crankcase
CARBURETTOR : Walbro WB series
MAXIM POWER : 20 KW / 8000 rpm (26.67 Hp.)
MAX TORQUE : 22 Nm / 7700 rpm
MAX ROTAZIONE 8100 giri
IGNITION : Electronic inductive
STARTER: Manual
TRASMISSION : Belt 508 PV-14G
REDUCTION : Pulley 1/2,6 (Optional 1/2,8 1/3)
SUPPORT ENGINE : 4 Silent-Block radial
FUEL : Unleaded NC 623-02 R.O.N. 95
addition 2% oil syntetich
WEIGHT: Engine complete 14.2 KG
WEIGHT: Engine complete of Balance shaft 14.6 KG
