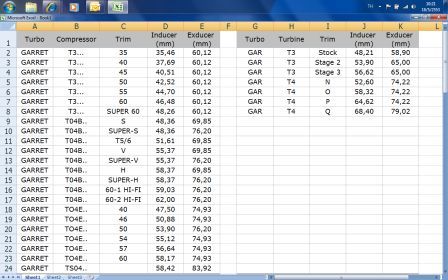

Turbo Compressor Trim Inducer (in) Exducer (in) Inducer (mm) Exducer (mm)
GARRET T3 35 1,396 2,367 35,46 60,12
GARRET T3 40 1,484 2,367 37,69 60,12
GARRET T3 45 1,595 2,367 40,51 60,12
GARRET T3 50 1,674 2,367 42,52 60,12
GARRET T3 55 1,760 2,367 44,70 60,12
GARRET T3 60 1,830 2,367 46,48 60,12
GARRET T3 SUPER 60 1,900 2,367 48,26 60,12
GARRET T04B S 1,904 2,750 48,36 69,85
GARRET T04B SUPER-S 1,904 3,000 48,36 76,20
GARRET T04B T5/6 2,032 2,750 51,61 69,85
GARRET T04B V 2,180 2,750 55,37 69,85
GARRET T04B SUPER-V 2,180 3,000 55,37 76,20
GARRET T04B H 2,298 2,750 58,37 69,85
GARRET T04B SUPER-H 2,298 3,000 58,37 76,20
GARRET T04B 60-1 HI-FI 2,324 3,000 59,03 76,20
GARRET T04B 60-2 HI-FI 2,441 3,000 62,00 76,20
GARRET TO4E 40 1,870 2,950 47,50 74,93
GARRET TO4E 46 2,003 2,950 50,88 74,93
GARRET TO4E 50 2,122 3,000 53,90 76,20
GARRET TO4E 54 2,170 2,950 55,12 74,93
GARRET TO4E 57 2,230 2,950 56,64 74,93
GARRET TO4E 60 2,290 2,950 58,17 74,93
GARRET TS04 2,300 3,304 58,42 83,92
|
