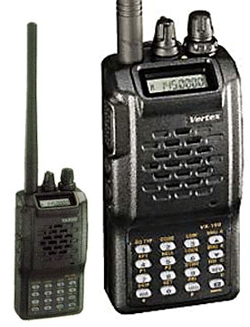

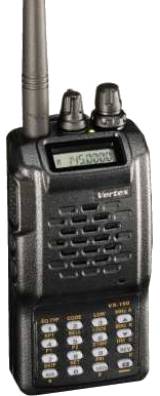

YAESU VX-150
ข้อกำหนดทางเทคนิค
Frequency Coverage Rx 144~146 MHz (B1), 140~174 MHz (B2)
Tx 144~146 MHz (B1), (B2)
Channel Steps 5, 10, 12.5, 15, 20, 25 & 50 kHz
Standard Repeater Shift 600 kHz
Emission Type G3E
Supply Voltage 6.0 to 16.0 VDC
Current Consumption Receive: 130 mA
Transmit (HIGH: 5 W): 1.3 A
(MID: 2 W): 800 mA
(LOW: 0.5 W): 500 mA
Auto Power Off: 8 mA
Antenna (SMA jack) YHA-62 rubber flex antenna
Case Size (WHD) 2.3" x 4.3" x 1.0"
Weight (approx.) 325g w/FNB-64 & antenna
ภาครับ
Circuit Type Double Conversion Superheteroyne
Sensitivity (for 12 dB SINAD) Better than 0.16 uV
Adjacent Channel Selectivity Typcal 70 dB
Intermodulation Typcal 70 dB
Audio Output 0.4 W @ 8 Ohms for 10% THD @ 7.2 V
ภาคส่ง
Power Output 5.0/2.0/0.5 W @ 7.2 V
Frequency Stability Better than 5 ppm
Maximum Deviation 5 kHz
Spurious Emissions Better than 60 dB below Carrier
Audio Distortion (@ 1 kHz) Less than 5% w/3 kHz Deviation
Microphone Type 2 kOhms Conderser
Burst Tone 1750 Hz
